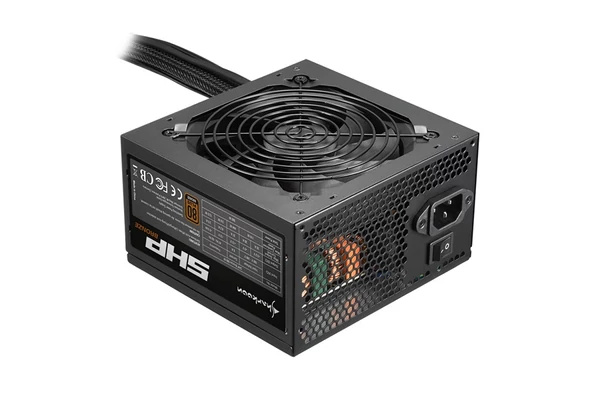

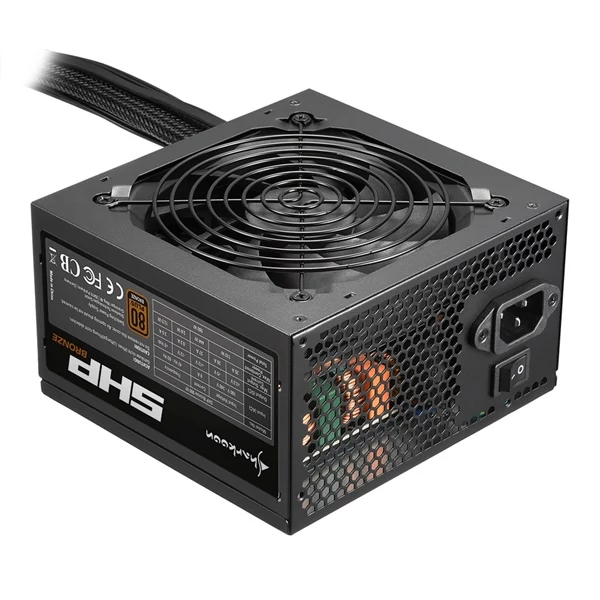

Sharkoon Tápegység - 500W SHP Bronze (80Plus Bronze; 12cm ventilátor; Aktív PFC)
SHARKOONVásárlói vélemények
Leírás
- General
- Form Factor:
- ATX 2.3
- Continuous Power:
- 500 W
- ErP Compliant:
- YES
- Active PFC:
- YES
- Technology:
- AC/DC
- MTBF:
- Min. 100,000 Hours
- Operating Temperature:
- 0 °C - 40 °C
- Standby Power Consumption:
- 0.3 W
- Weight incl. Fixed Cables:
- 1.6 kg
- Dimensions (L x W x H):
- 140 x 150 x 86 mm
- Housing Color:
- Black
- Input
- Voltage:
- 100 - 240 VAC
- Frequency:
- 47 - 63 Hz
- Input Current (110/230 V):
- 8 A / 4 A
- Output
- 12 V Rail(s):
- 1
- Load 3.3 V:
- 20 A
- Load 5 V:
- 20 A
- Max. Combined Power 3.3 V + 5 V:
- 110 W
- Load 12 V1:
- 37 A
- Max. Combined Power 12 V:
- 444 W
- Load 5 VSB:
- 2.5 A
- Load -12 V:
- 0.3 A
- Cable and Connectors
- Cable Configuration:
- Fixed
- Flat Cables:
- ?
- Maximum Cable Length:
- 120 cm
- Cable Length Mainboard Connector:
- 55 cm
- Cable Length CPU Connector:
- 60 cm + 15 cm
- Cable Length PCIe Connector:
- 55 cm + 15 cm
- Cable Length to First Peripheral Connector:
- 55 cm
- 20+4-Pin Mainboard Connector:
- 1
- 4+4-Pin CPU Connector:
- 1
- 8-Pin CPU Connector:
- 1
- 6+2-Pin PCIe Connector:
- 2
- SATA Connector:
- 6
- IDE Connector:
- 2
- Fan
- Fan Size:
- 120 mm
- Bearing Type:
- Sleeve Bearing
- Protections
- OVP (Over Voltage Protection):
- YES
- UVP (Under Voltage Protection):
- YES
- SCP (Short Circuit Protection):
- YES
- OPP (Over Power Protection):
- YES
- Safety Certifications
- CE:
- YES
- FCC:
- YES
- Package Contents
- SHP Bronze 500W
- Power Cord
- Mounting Screws
- Manual
- EAN Code
- 4044951028948
Paraméterek
| ATX | 1 |
| PFC | Aktív |
| SATA | 6 |
| Tanusítvány | 80+Bronze |
| Teljesítmény | 500 |
| Ventilátor méret | 12 |
